High Frequency Straight Seam Welding Machine Automatic Seam Welder

    Buy cheap High Frequency Straight Seam Welding Machine Automatic Seam Welder from wholesalers

    Buy cheap High Frequency Straight Seam Welding Machine Automatic Seam Welder from wholesalers
    • Buy cheap High Frequency Straight Seam Welding Machine Automatic Seam Welder from wholesalers

    High Frequency Straight Seam Welding Machine Automatic Seam Welder

    Ask Lasest Price
    Brand Name : Libon
    Price : Negotiable
    Payment Terms : L/C, T/T, D/P, Western Union
    Delivery Time : 20~30days from the date of files approval
    • Product Details
    • Company Profile

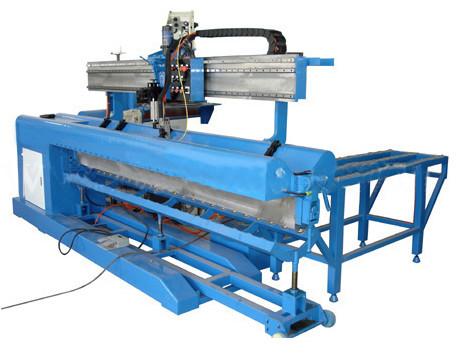

    High Frequency Straight Seam Welding Machine Automatic Seam Welder


    High Frequency Straight Seam Welding Machine Automatic Seam Welder


    Straight seam welding machine details:

    The automatic straight seam welder is used for the welding of the middle seam of the cylinder after the coil and the docking of the flat plate. This machine can complete welding methods such as argon arc welding filler wire welding and gas shielded welding.


    Automatic Seam Welding Machine Main Feature

    1) Easy operation, all of parameter can be set by touch screen.

    2) Develop the function of welding wire compensating, is able to add weld wire automaticly.

    3) The weld is more secure, weld face is more smooth.

    4) Whole machine is controlled by self developed PLC system,has higher accuracy.

    5) The welding flat is lifting, can be randomly adjusted according to diameter of tube


    Straight seam welding machine Technical Parameters

    1. Effective welding length: 800mm

    2. Welding diameter: 100-900mm

    3. Welding thickness: 2-3.5mm

    4. Welding speed: adjustable from 400-600mm/ min (adjustable according to welding speed)

    5. The walking speed of tooling is 1400mm/ min

    6. Pressure range: 0.4 -- 0.6mpa


    Straight seam welding machine

    Product Name:Straight Seam Welding Machine
    Welding Thickness:2-3.5mm
    Welding Length:800mm
    Welding Speed:Adjustable From 400-600mm/ Min
    Type:Auto Seam Welding Machine
    Welding Diameter:100-900mm
    Pressure Range:0.4 -- 0.6mpa
    Welding Method:Gas Shielded Welding

    High Frequency Straight Seam Welding Machine Automatic Seam Welder
